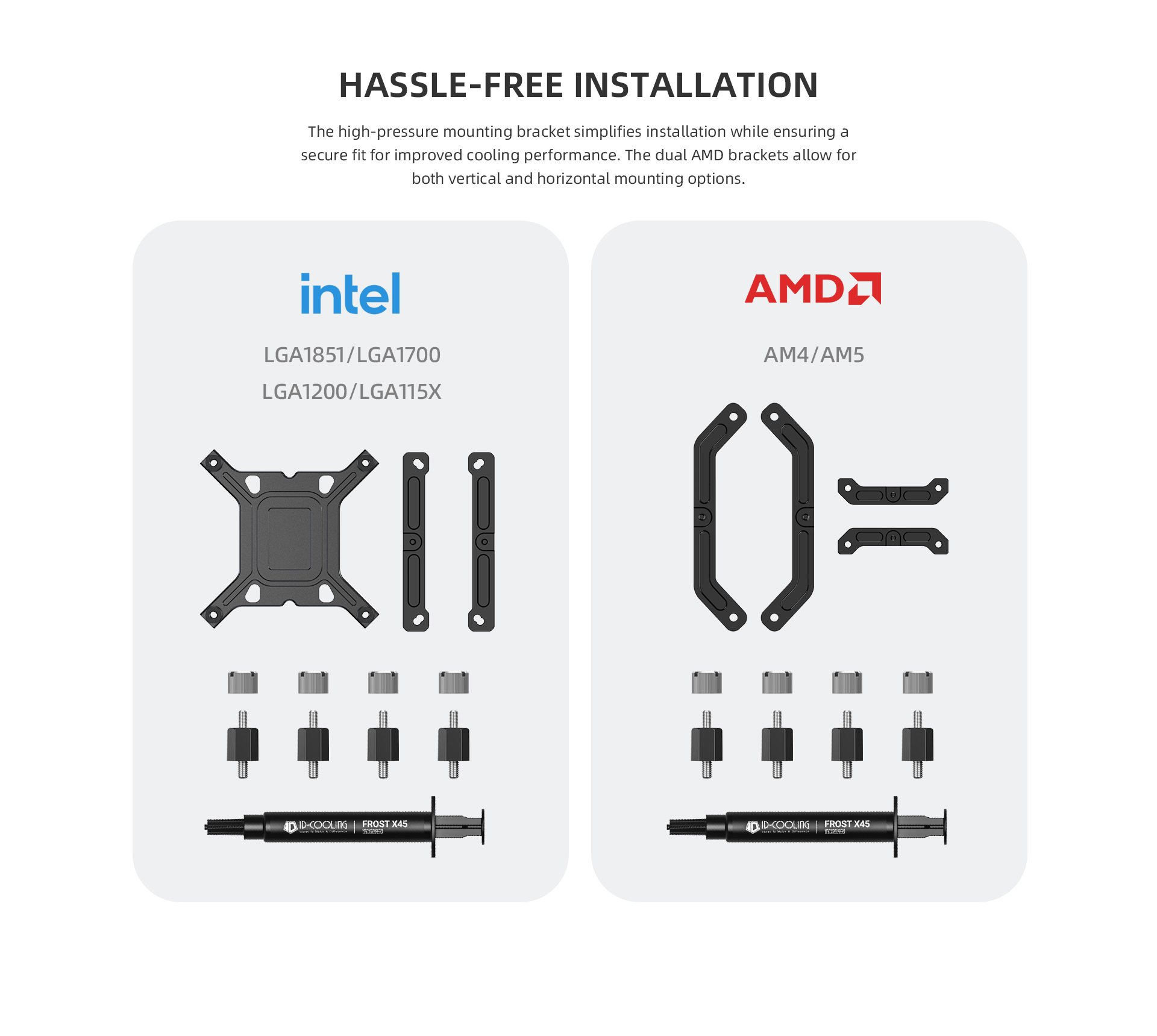

Compatibility |
Intel LGA1851/1700/1200/115X |
|
AMD AM5/AM4 |
|
|
TDP |
150W |
|

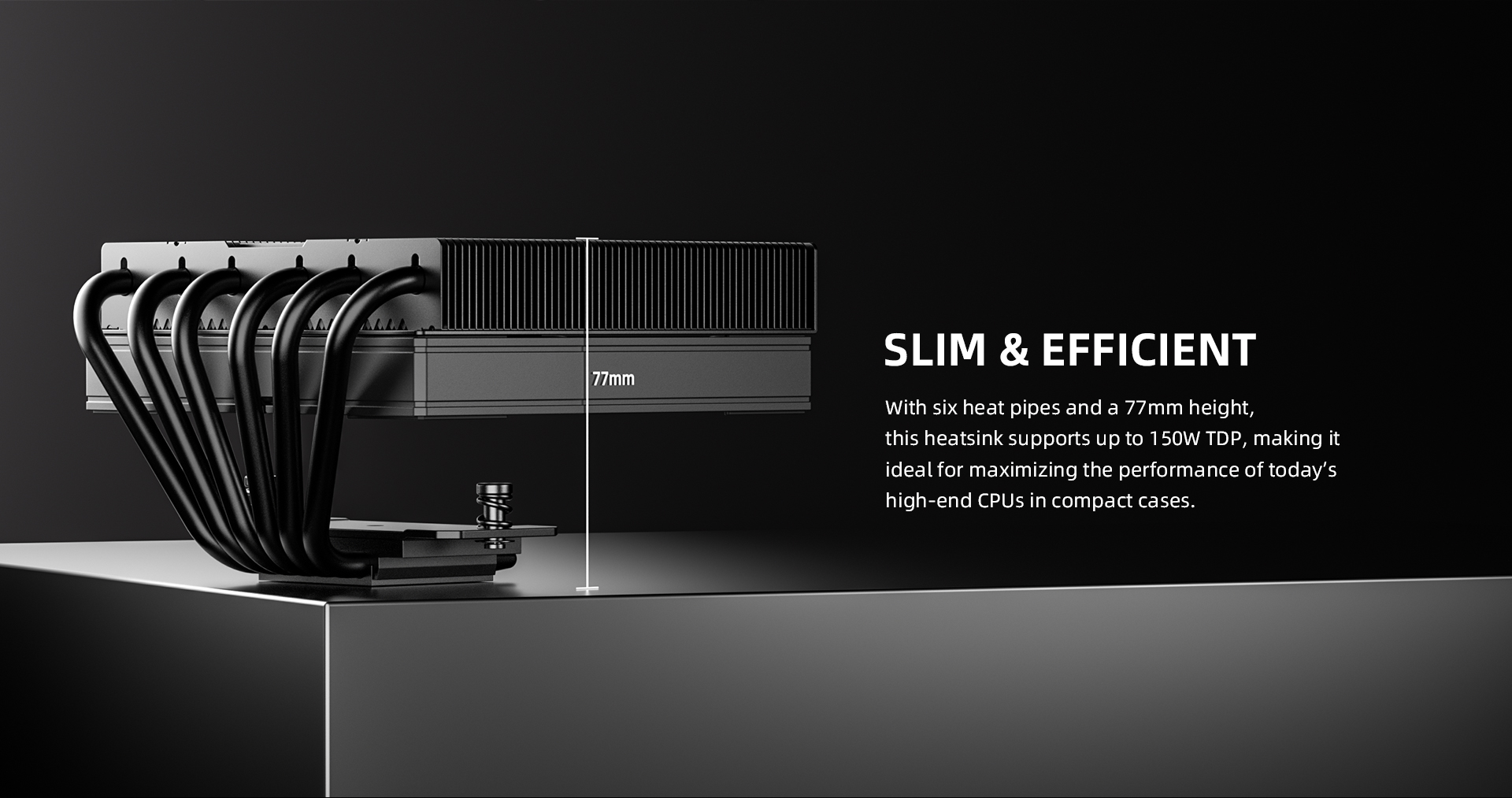

Overall Dimension |
132×120×77mm |
|

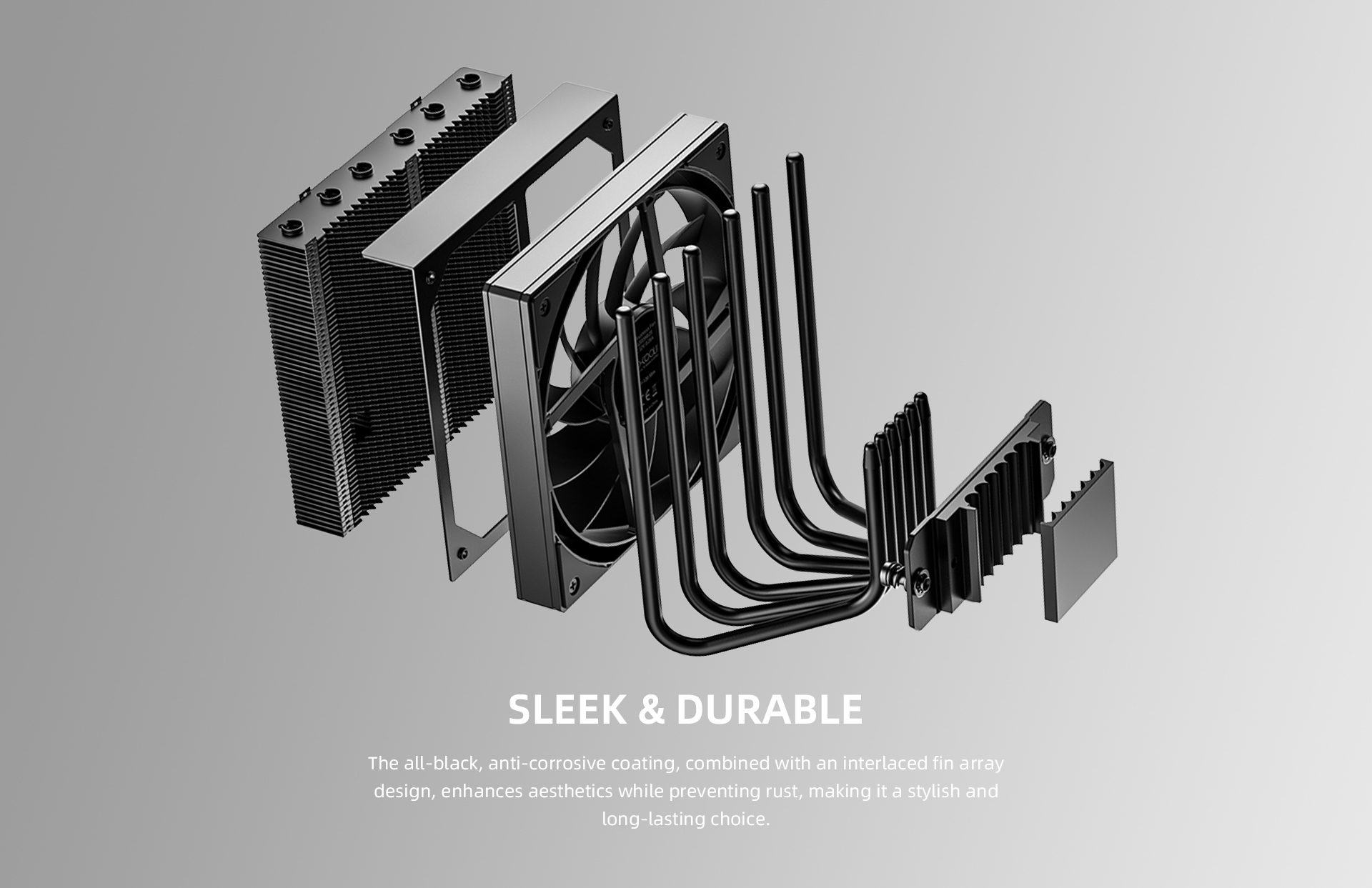

Material |
6×Ф6mm heatpipe+Copper Base+Aluminum Fin |
|
Weight |
550g (Heastink+fan) |
|

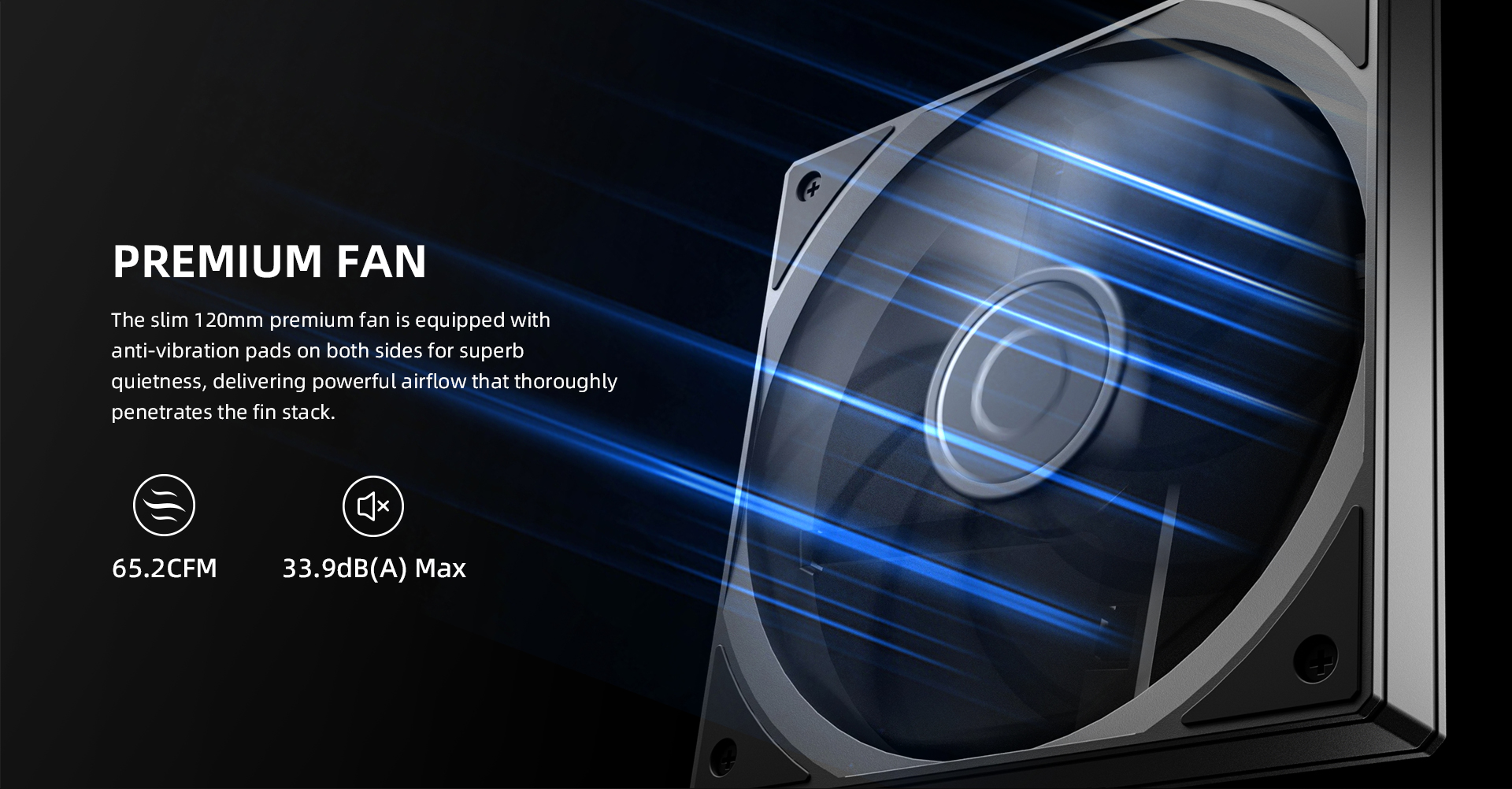

Fan Dimension |
120×120×17mm |
|
Fan Speed |
500~1850RPM±10% |
|
Max. Air Flow |
65.2CFM |
|
Max. Static Pressure |
1.36mmH2O |
|
Noise |
33.9dB(A) max. |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8～13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.28A |
|
Power Input |
3.36W |
|
Bearing Type |
Hydraulic Bearing |
|
Connector |
4Pin PWM |

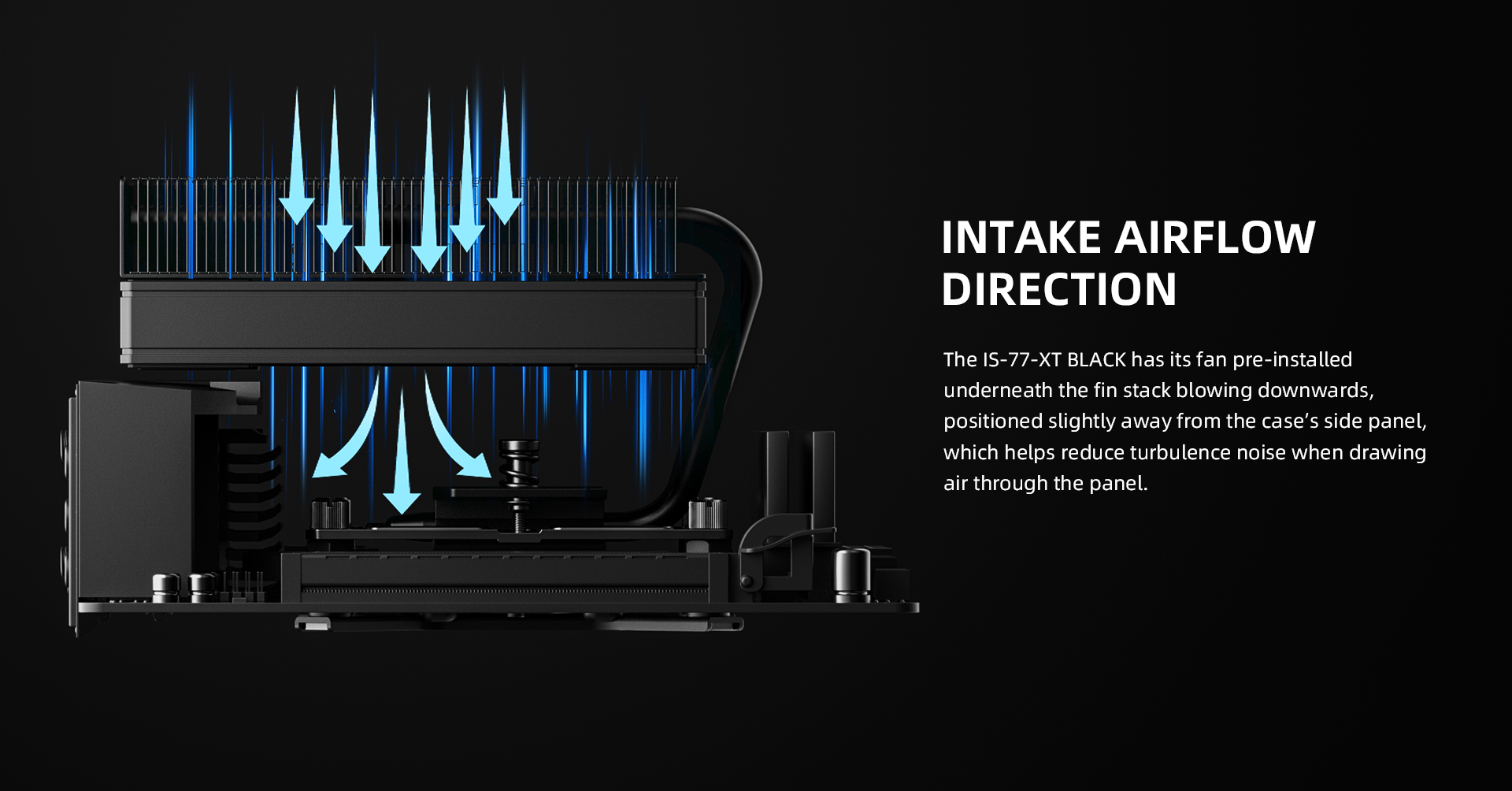

The final version of the IS-77-XT BLACK has been optimized based on the suggestions in the video, with the fan now pre-installed blowing downwards.
Currently there are no downloads for this product.
