ID-COOLING Performance Classification for CPU Coolers
Our TDP (Thermal Design Power) ratings are based on rigorous testing under controlled conditions.
To achieve maximum accuracy, we use two test setups tailored to different cooler types and their intended operating environments.
View Methodology
| Component | Specification |
|---|---|
| CPU | Intel Core i9-14900K |
| Motherboard | GIGABYTE Z790 AORUS ELITE |
| Memory | Kingston FURY DDR5-5600, 16GB |
| SSD | SSSTC C15-BD512, PCIe Gen3 x4 |
| Graphics | Intel UHD Graphics 770 |
| PSU | ID-COOLING FG-750W |
| Case | ID-COOLING WARE 510 |
| Front Fans | 2 × AS-140 at 1,200 rpm |
| Rear Fan | 1 × AM-120 at 2,200 rpm |
| Workload | AIDA64 Stress FPU — AVX-512 Disabled |
| Power Monitoring | HWiNFO64 — CPU Package Power Recorded |
| Component | Specification |
|---|---|
| CPU | |
| Motherboard | |
| Memory | |
| SSD | |
| Graphics | |
| PSU | |
| Case | |
| Top Fans | |
| Rear Fan | |
| Workload | AIDA64 Stress FPU — AVX-512 Disabled |
| Power Monitoring | HWiNFO64 — CPU Package Power Recorded |
Actual cooling performance may vary depending on CPU model, motherboard settings, ambient temperature, case airflow, and system configuration.

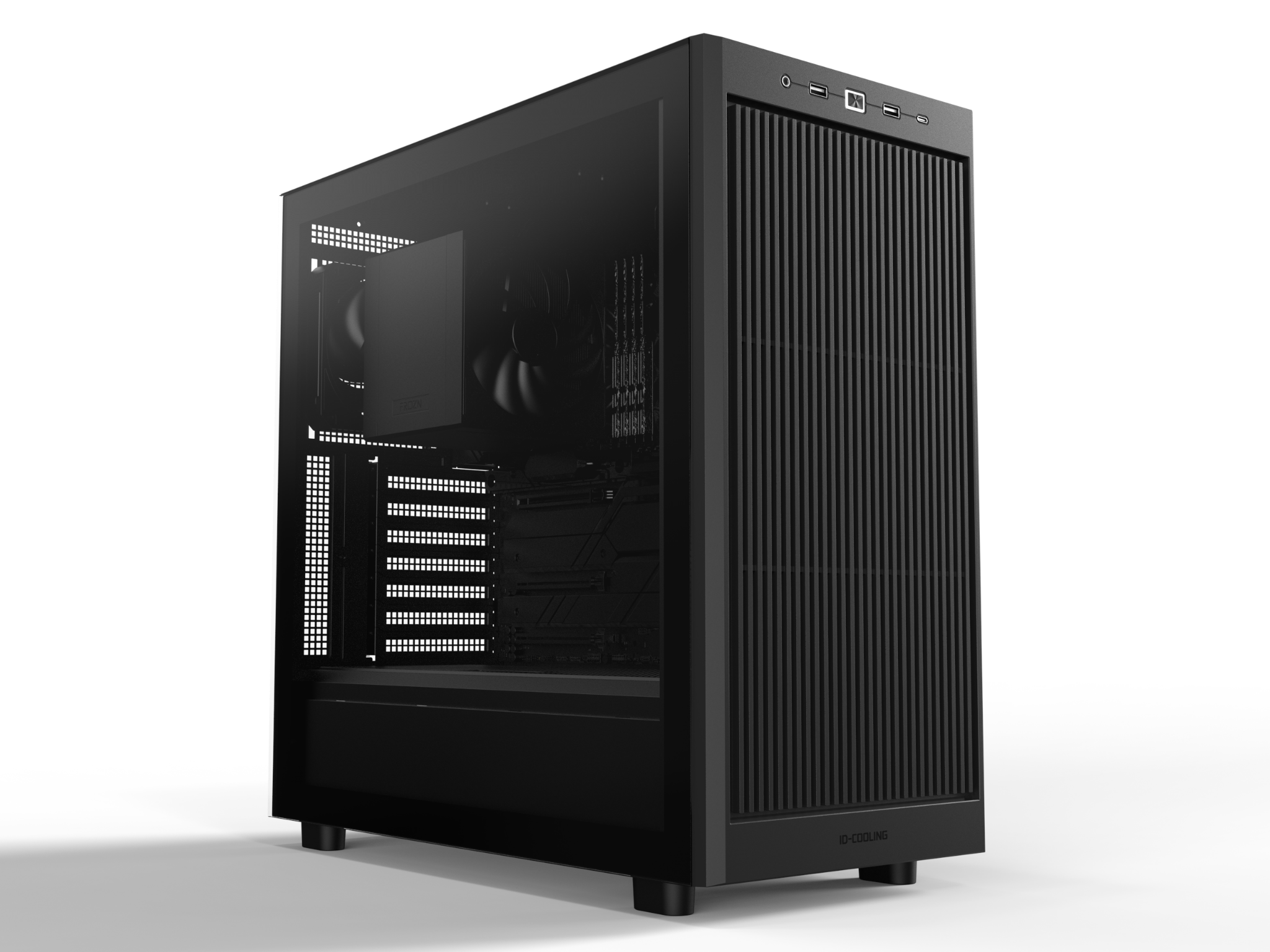

We use well-ventilated tower cases to allow each cooler to perform at its best.
These ratings are based on fully optimised systems tested at an ambient temperature of 25°C. It must be noted that results can be worse at higher ambient temperatures or in smaller, less ventilated cases.
